Jewelry Diamond Eternity Band Ring 3D CAD Tutorial By Rhino 3D Version 7

How To Design Eternity Jewelry Diamond Band In 3D Cad By Rhino 7

1- Introduction For How To Design Eternity Jewelry Diamond Band Ring In 3D Cad By Rhino 7

1- Introduction

 How to model with Rhino 3D  Version 7 and with Free Grasshopper Gold Plugin Jewelry Designs like Eternity Band Ring Design from A to Z, after preparing for 3D Printing than can be Molding or Casting in Metals like Gold, Silver or Else.

Then preparing CAD files as much as realistic for Rendering or animations.

 All Project Files Homework in Project can be Downloaded.

You will get

2- Installation of Grasshopper Gold Plugin

 Installation Grasshopper Gold Plugin from a site it’s Free PlugIn I gave you the link and how to install Grasshopper Gold Plugin for Rhino 7, to start using.

3- How To Modeling With 2D And 3D CAD For Jewelry Eternity Band Ring

How To Modeling With 2D And 3D CAD For Jewelry Eternity Band Ring, we will start using 2D drawing and Grasshopper Gold Plugin for finger ring custom size and diamond custom size with how to prong make and etc.

4- How To Prepare For 3D Print By Rhino V7 And Magic In STL File Format

How To Prepare For 3D Print By Rhino V7 And Magic In STL File Format, we can make one shell object with STL file format so that can 3d printer machine read the file, we can make it with Rhino 7 or with Magic software STL file format.

5- How To Make Realistic Cad Model Eternity Band For Be Ready Rendering In V-Ray Render Engine Software

How To Make Realistic Cad Model Eternity Band For Be Ready Rendering In V-Ray Render Engine Software, by bending prongs on diamonds and other parts smoothly as in the real how diamond setter makes prongs bend on diamonds, we will do as much as we can make a real for take the best result from render image or animation, we using V-Ray for Rhino 7 Render Engine Software for rendering our CAD design.

Project Files:

Render 3DM - 2 Files

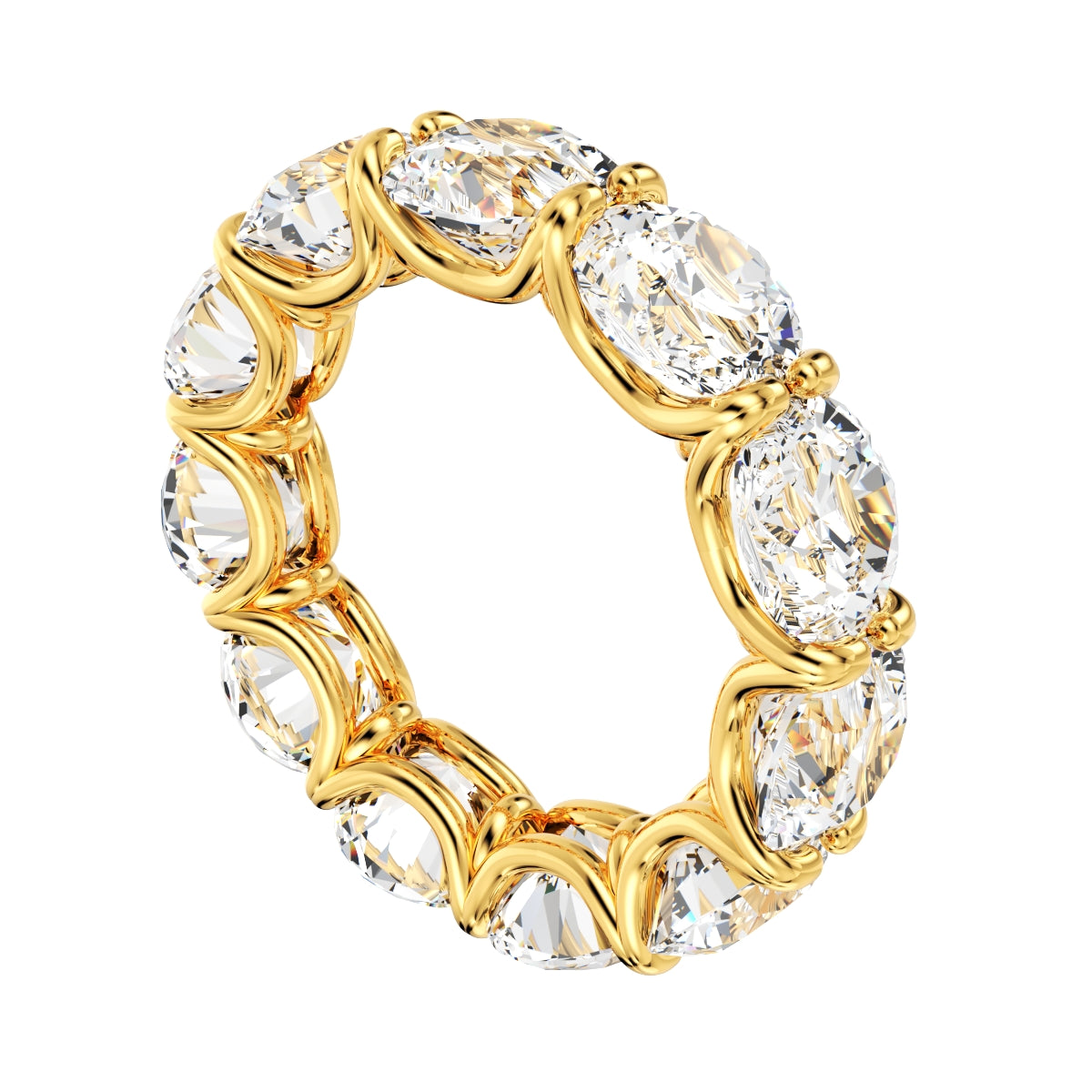

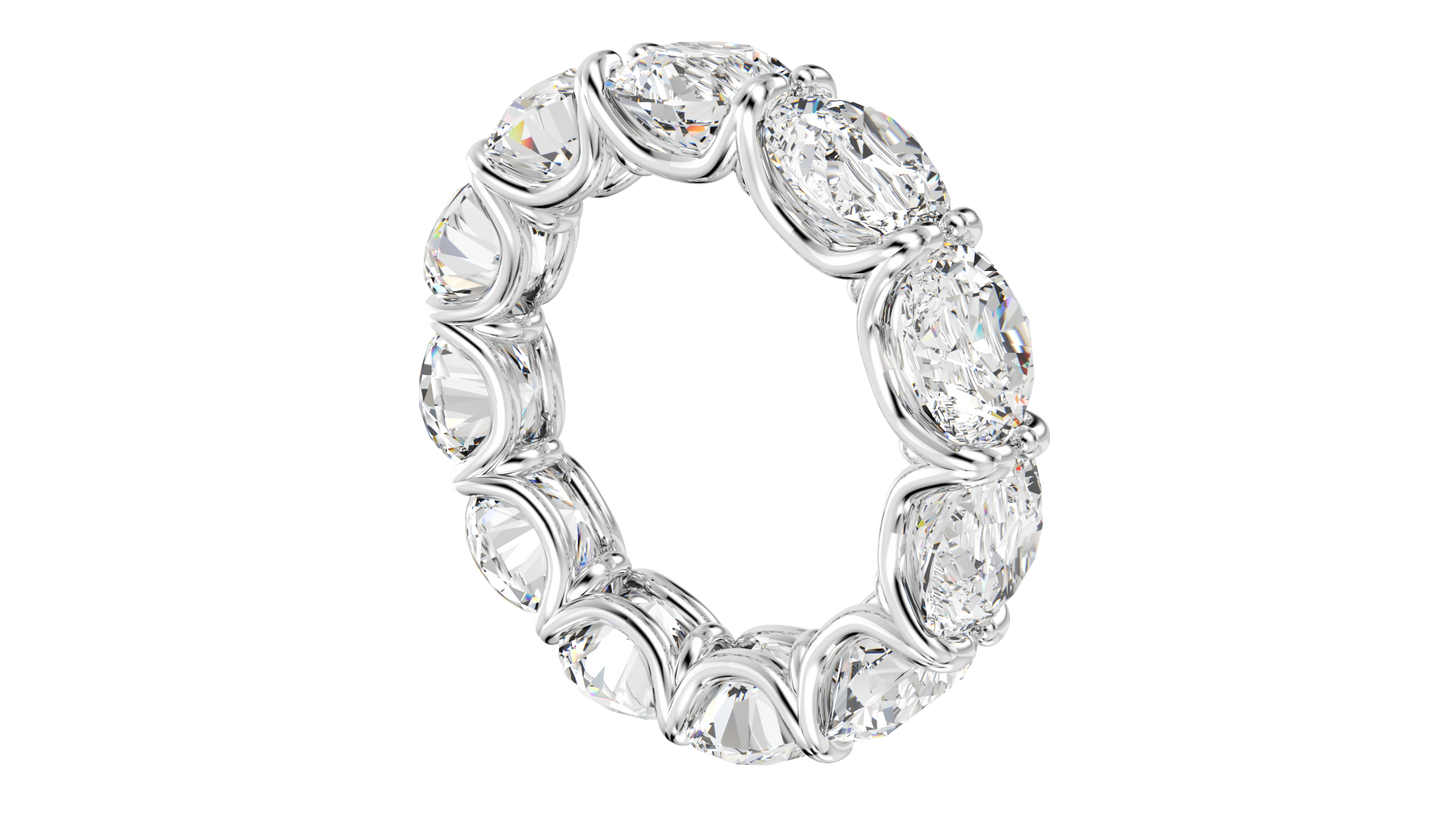

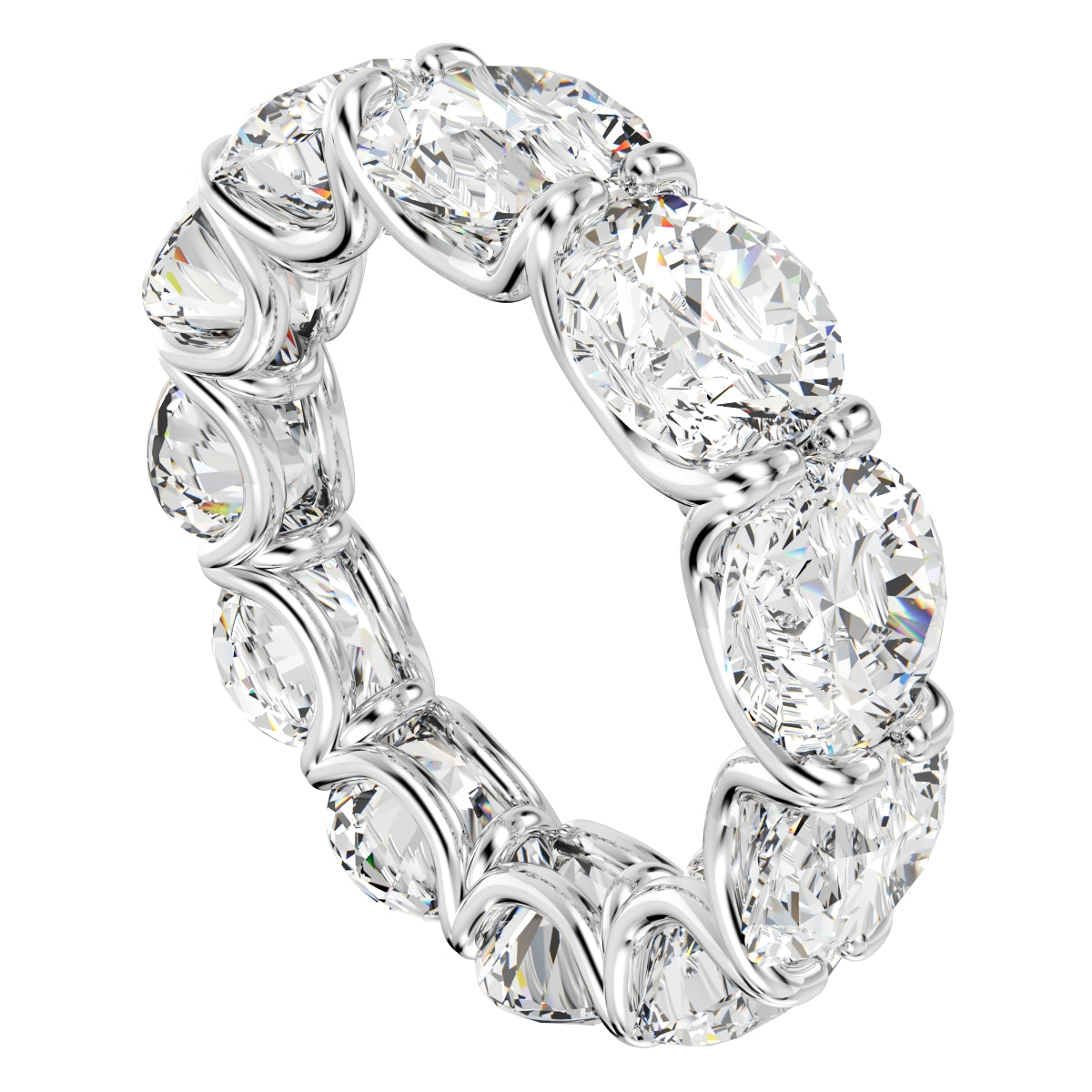

Render Images JPEG And PNG Images

Thank You.

Best from

Pierre
